Introductions

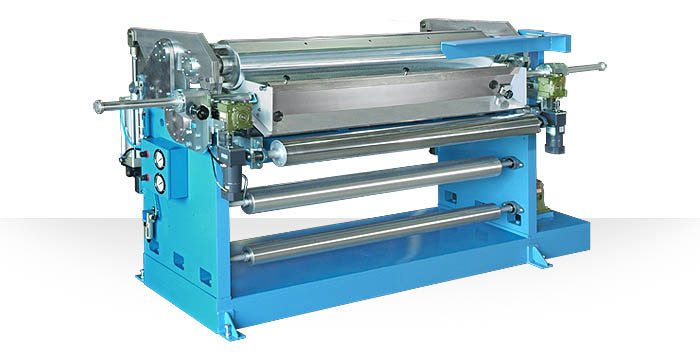

Circular-Knife coating machine uses roller to transfer adhesive on the surface of cloth fabric, using circular-knife shaft to scrape adhesive and let it be spread evenly and control coating thickness to achieve perfect surface of adhesive on the cloth fabric.

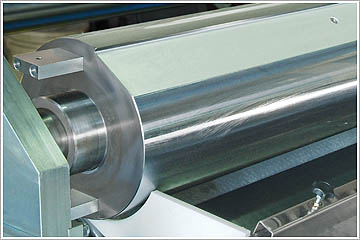

Circular-Knife shaft is to control coating thickness & uniformity

Circular-knife shaft uses cutting groove angle of the shaft surface to form a knife-like, which control coating thickness and uniformity.

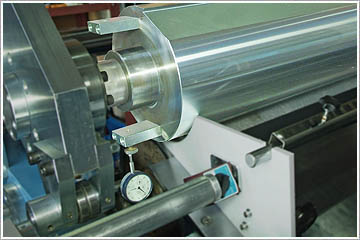

Installing meter to adjust coating thickness precisely
  Installing meter to measure and adjust the gap between circular-knife shaft and roller, and achieve the purpose of precise adjustment of coating thickness.

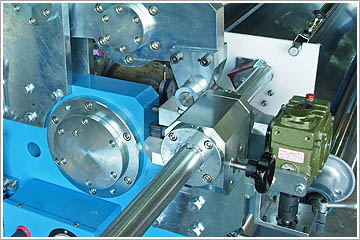

Gap adjustment structure is to automatically adjust the gap between circular-knife
    shaft and roller
  Installing circular-knife gap-adjustment structure, it makes circular-knife shaft arise automatically in the cloth fabric’s overlapping position in order to avoid contacting overlapped cloth fabric, the circular-knife shaft will return to normal position after it has left the position of overlapped cloth fabric.





Specifications

Model No.

CB-180

Roll Width (mm)

1,800

Cloth fabric width (mm)

1,700

Production speed (M/mim)

3~50 M/min

Dimension L * W * H (mm)

3,000 * 1200 * 1,400

Weight (Kg) 7,000 Kg

Power

3φ , 220 / 380V , 50 / 60 Hz

Air pressure

6Kg / c㎡

Machine's color selection

The machine's color could be assigned by customer, or assigned by the following popular color cards.


01
02
03
04
05
06
